Sale!

UV Sterilizer Lamp/Quartz Sleeve Combo For UV Max C, C4, D, D4 & D4 PLUS Systems

Original price was: $181.00.Current price is: $99.99.

Lamp/Sleeve Combo for C, C4, D, D4 & D4 Plus
Replacing Sleeve can Increase UV Transmittance
Saves Money vs Ordering Separately
Sleeves Can Build Up with Hardness & Scale
O-rings Included

SKU: 602810-102 Categories: Replacement UV Lamps and Sleeve Combos, Ultraviolet Sterilizer Systems , UV Sterilization System Parts , Filtration Water Systems

Quality that lasts, prices that don't.
Expertly Sourced, Quality Guaranteed
Experience the Best Quality
Safe Payments, the Smart Choice

Description
Reviews (0)

UV Lamp/Quartz Sleeve Replacement Instructions

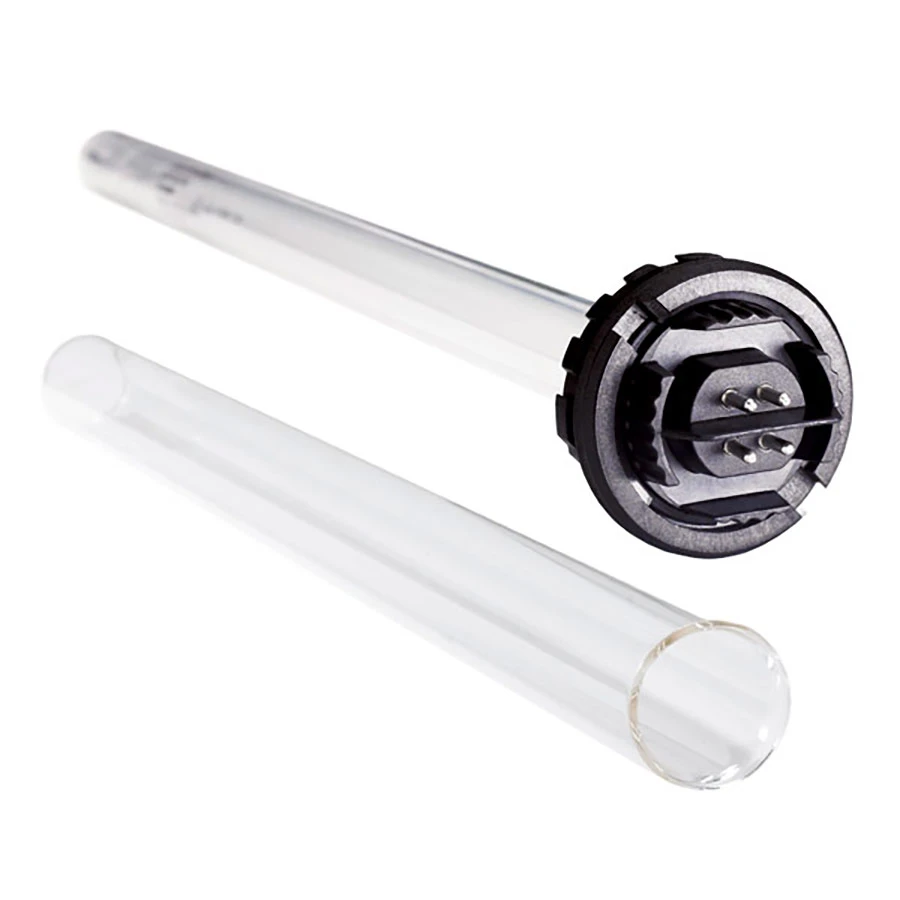

UV Sterilizer Lamp/Quartz Sleeve Combo consists of these parts:

602805 Replacement Lamp
602732 Replacement Sleeve

Viqua Lamp/Quartz Sleeve for these systems:

UV Max Model C
UV Max Model C4 (650692)
UV Max Model D
UV Max Model D4 (650694)
UV Max Model D4 PLUS (650695)
UV Max Model D4 Premium (660089-R)

UV Sterilizer Lamp/Quartz Sleeve Combo for UV Max C, C4, D, D4 & D4 PLUS Systems Features:

UV Max lamps install with an easy quarter-turn to a positive stop to prevent over tightening
Lamps should be replaced after one year of operation to ensure proper disinfection.
Each replacement lamp is shipped with complete installation instructions with images.
Replacement Lamp includes (2) O-rings.
Warranty: 1 Year

UV Lamp:

All UV Max systems include an ultraviolet lamp, which is surrounded by a quartz sleeve. The amount of UV light created by the UV lamp decreases over time, requiring that the UV lamp be replaced.

Quartz Sleeve:

All UV Max systems include a quartz sleeve, which surrounds the lamp. The quartz sleeve provides thermal protection for the UV lamp and protects it from possible water damage. The quartz material used in VIQUA quartz sleeves are a 100% fused silica which lend to the sleeve’s high transmittance. A high transmittance is important as the UV light must travel through the sleeve to get to the water. There are a variety of quartz sleeve designs, depending on the system that they are being used in.
