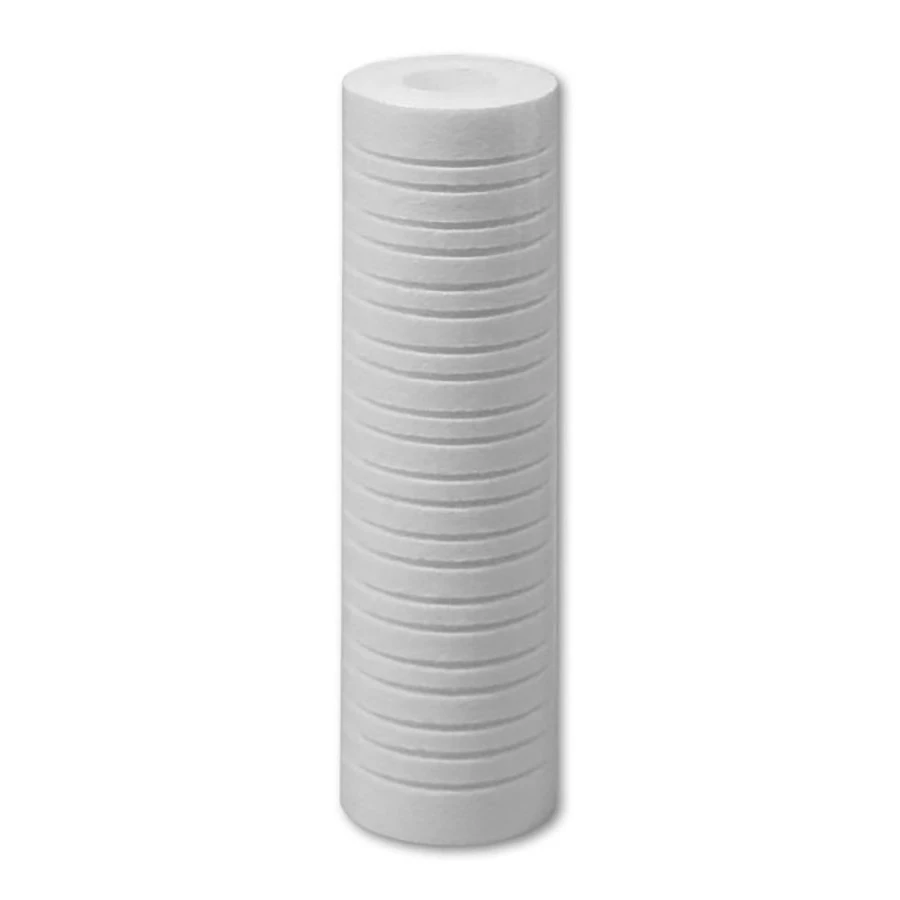

10″ X 2-1/2″ (5 Or 20 Micron) 4-Layer, Grooved Melt Blown Sediment Cartridge

Original price was: $12.00.Current price is: $8.40.

Integrated 3-Stage Process Yielding True Depth Filtration
NSF Certified
FDA Compliant Material
5 or 20 Micron Rating

SKU: ADJVZ 18751 Categories: Melt Blown Cartridges, Sediment Cartridges , Replacement Water Filters & Cartridges Tags: Groov, NSF 42 Certified, NSF 61 Certified

Quality that lasts, prices that don't.
Expertly Sourced, Quality Guaranteed
Experience the Best Quality
Safe Payments, the Smart Choice

5 or 20 Micron Removal of Dirt, Rust & Sediment
Industry Standard Size 10″ × 2.5″ Sediment Cartridge
Grooved Cartridges have increased surface area for longer life and better performance.

American Melt Blown’s 4-zone technology allows the larger particles to be trapped in the outer most layers. The inner most layer is where the true efficiency rating is achieved.

Features & Benefits:

Removal from 1 to 100 microns
Quad Zone technology allow the formation of 4 separate filtration zones within the depth of the filter cartridge
Continuous 4-zone structure provides effective pre-filtration and final filtration
State of the art computer controlled manufacturing process delivers an extremely accurate and consistent product per each zone for proper fiber sizing
High-strength polypropylene core maximizes flow and optimizes each of the 4 zones. If required all Quad series may be ordered with cores
100% polypropylene construction allows a wide range of uses, including FDA compliant material for food and beverage contact under CFR Title 21
All Quad Series cartridges are free of surfactants, binders or adhesives of any kind
Continuous lengths up to 72″
All End Configurations available to fit most industry standards
All end caps are thermal bonded, no glues or adhesives are used

This image shows the Quad Series cut away layer by layer. The outermost layers are made of larger diameter fibers to allow larger particles to flow through, while the inner most layers trap the fine particles maximizing the life of the filter.

Image A is a microscopic photo of the outer surface of a typical melt blown filter. Most competitors blind off the surface of the filter to create smaller openings to achieve higher efficiencies. American Melt Blown’s ability to control the inner layers’ efficiencies separately allow the Quad BE Series to have a more open outer surface as in Image B. Not having to sacrifice dirt holding capacity to achieve high efficiency is why the Quad BE Series is superior to other melt blown filters.

Micron Size	5 Micron, 20 Micron
Country of Origin	Made in USA
Cartridge Size	9.75" x 2.5" Standard
Cartridge Housing Size	10″ x 2.5″ Standard
Material Composition	Polypropylene (PP)
